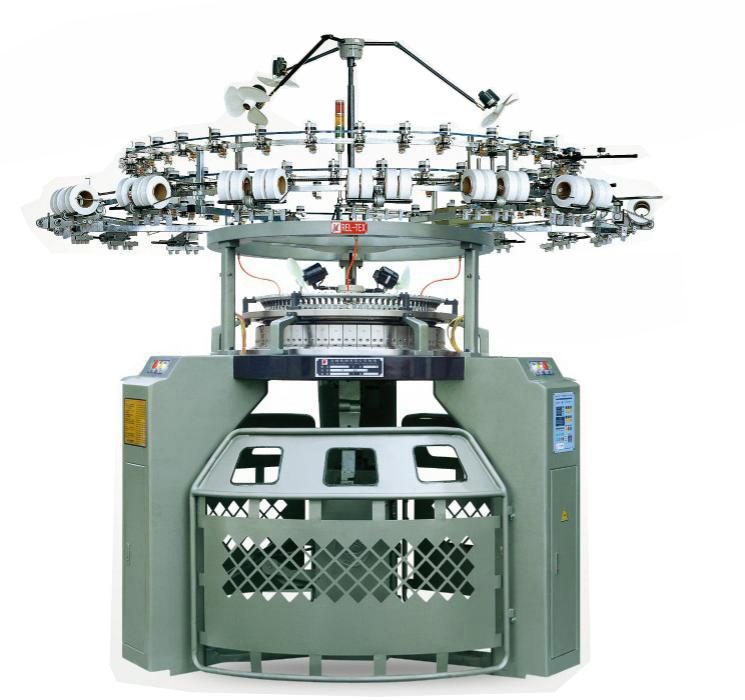

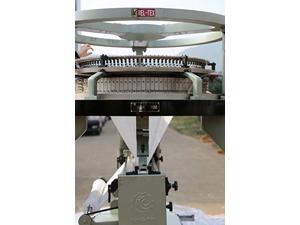

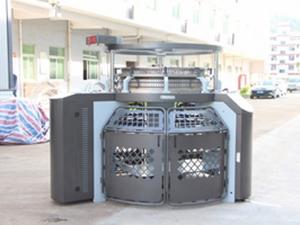

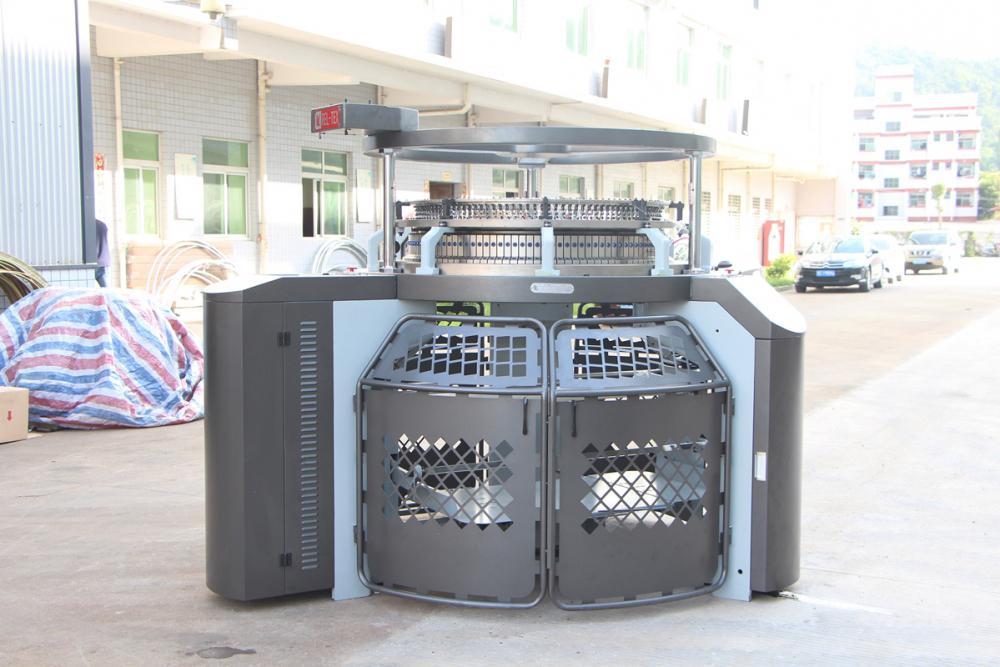

High Speed Single Jersey Circular Knitting Machine

Single Jersey Knitting Machine
  • Single Jersey Knitting Machine
  • Single Jersey Knitting Machine
  • Single Jersey Knitting Machine
  • Single Jersey Knitting Machine
  • Single Jersey Knitting Machine
  • Single Jersey Knitting Machine
Product Description

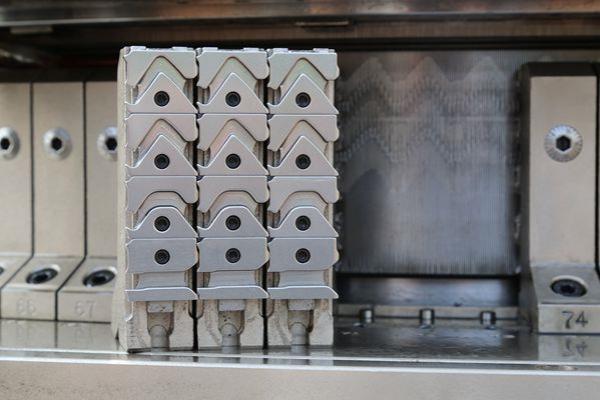

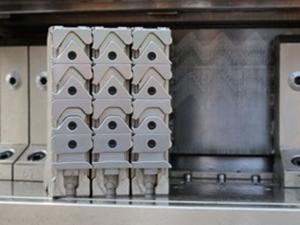

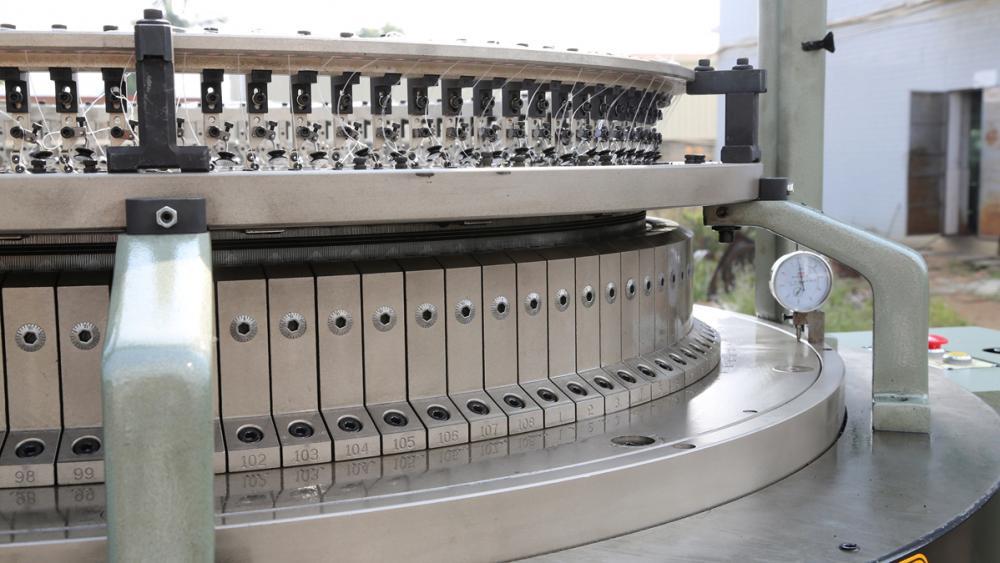

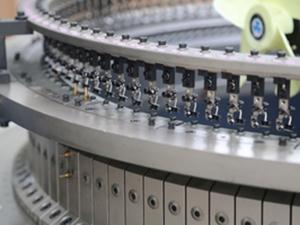

The single jersey machine is a circular knitting machine and features 4 tracks. Due to the cylindrical four track cam design, it produces a variety of high quality, single jerseys in a diverse array of patterns and thicknesses through the different arrangement of cams and needles.
Available single jerseys include pique fabric, mesh fabric, twill, polyester-cotton blended fabric, highly elastic fabric, plain weave fabric and fabric for swimwear. Our specially designed fabric rolling system allows cloth to be evenly pulled and reduces the risk of irregular color. It is applicable for processing an array of materials, including cotton yarn, blended yarn in a variety of specifications, highly elastic polyester silk, chemical fibers and more.

Product Application

Swimwear, tights, gym suit, sport suit, underclothes, T-shirt, polo shirt, etc.

Product Functions and Advantages
  • The frame has undergone a natural aging treatment. The oil-immersed gear meshing drive model is known for its exceptional stability and low noise levels.
  • The advanced computer control system automatically monitors and controls all operating parameters, including regularly spraying oil in specific quantities, dust removal, needle breakage detection, automatic stop when fabric breaks, and automatic stop when arriving at the set output.
  • This equipment features dust exhaust fans in the middle, top, and bottom of the machine to effectively clear accumulated cotton fibers to protect needles and sinkers, as well as enhance the running efficiency.
  • The single jersey machine can be equipped with fleece conversion kit which contains special cams and needles. Therefore, it can also serve as a fleece knitting machine.
Fabric Samples
  • Fabric Samples
  • Fabric Samples
Parameters of Single Jersey Knitting Machine
Model Cylinder Dia. Gauge Feeder
YFSG-(3F/Inch) 12"-44" 12G-32G 36F-132F
YFSG-(4F/Inch) 12"-44" 12G-32G 48F-176F
YFSG-(6F/Inch) 12"-44" 12G-32G 72F-264F

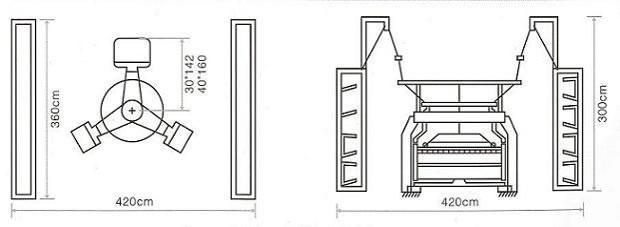

Machine Dimension
Machine Dimension
Diameter Net Weight (kg) Gross Weight (kg) Wooden Case Size (cm)
40”-44” 2400 2600 240x230x200
36”-38” 2200 2400 230x223x200
30”-34” 2000 2200 220x200x200
12"~28" 1800 2000 200x200x200
Durable machine frame

Steel wire supported main drive system
Central and individual stitch length adjustment facility
Japanese stainless steel cylinder
Standard side creels
Positive feedersB19Y/TPF/MPF

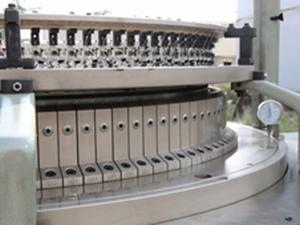

Individual cylinder cam box for each feeder
Inverter motor controller
Mechanical fabric take-up system
Anti-dust devices Top-3 & Middle-2
Cadratex fabric spreader
Integrated main power control panel with 3 shift counters
Digital revolution counter
Pneumatic spray oiler
Needle detectors
Ceramic tip yarn carriers
Tools box

Optional Equipment

Positive feeder TPF/MPF
Lycra feeder WAL5-4BL/MER
Pump type oiler
Aluminum creel
Fabric detectors
Fabric folding device
3 thread fleece fabric conversion unit

Founded in 1996, Rel-Tex is an experienced Chinese manufacturer with a focus on the design and assembly of a variety of textile machines. Our knitting equipment covers a full range of modern textile processes that clothing producers can rely on to create quality products with excellent reliability. In addition to a full selection of equipment, premium spare parts can also be provided for all catalogued products.
