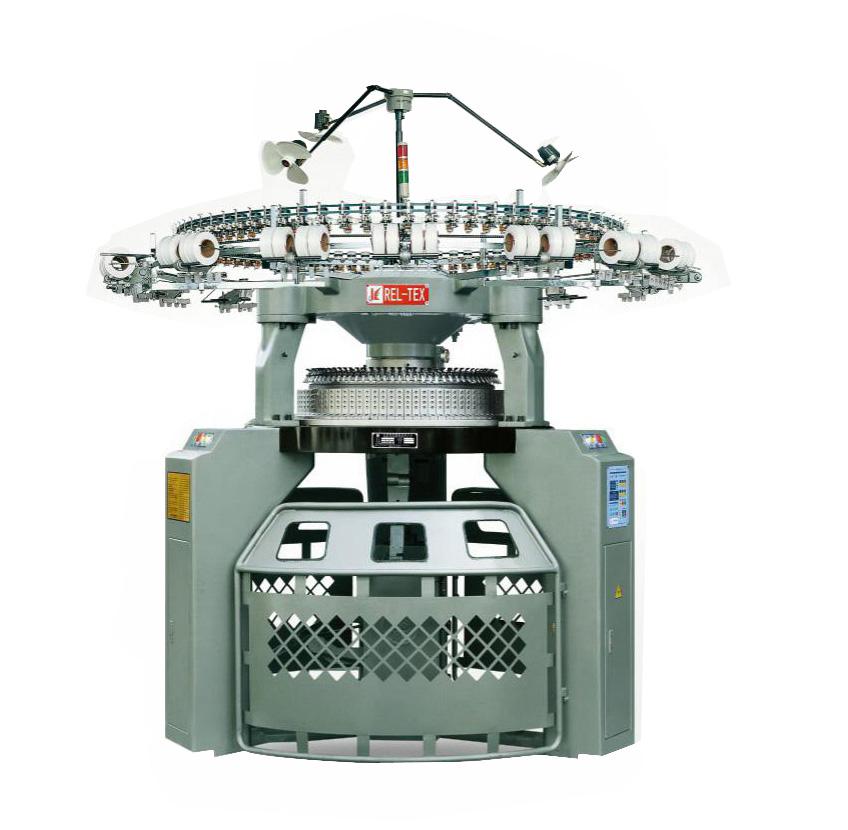

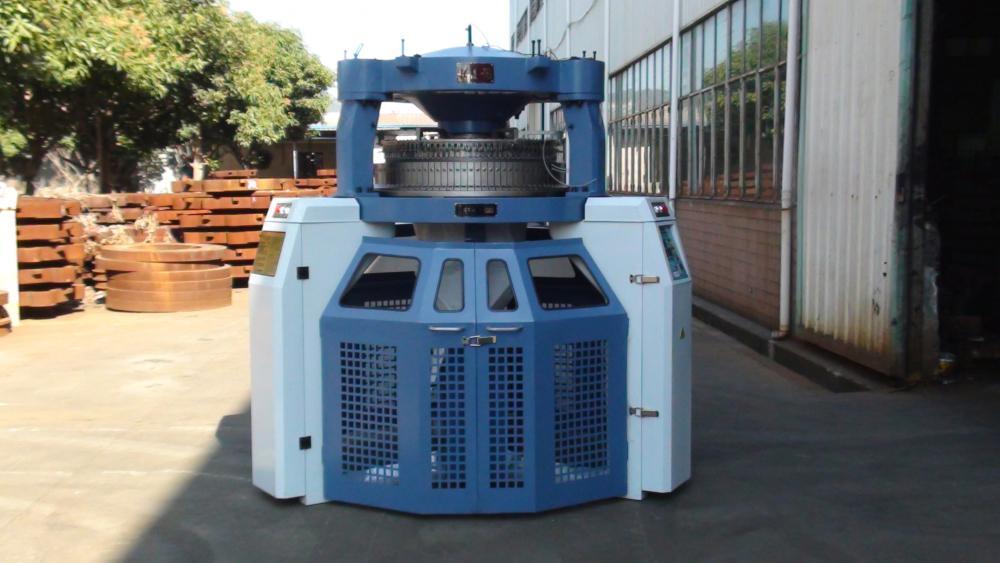

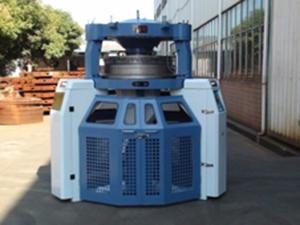

High Speed Double Jersey/Interlock /Rib Circular Knitting Machine

Double Jersey Interlock/Rib Knitting Machine
  • Double Jersey Interlock/Rib Knitting Machine
  • Double Jersey Interlock/Rib Knitting Machine
  • Double Jersey Interlock/Rib Knitting Machine
  • Double Jersey Interlock/Rib Knitting Machine
Product Description

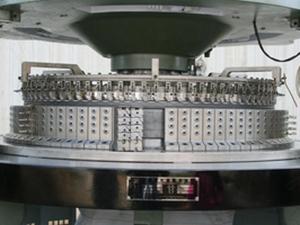

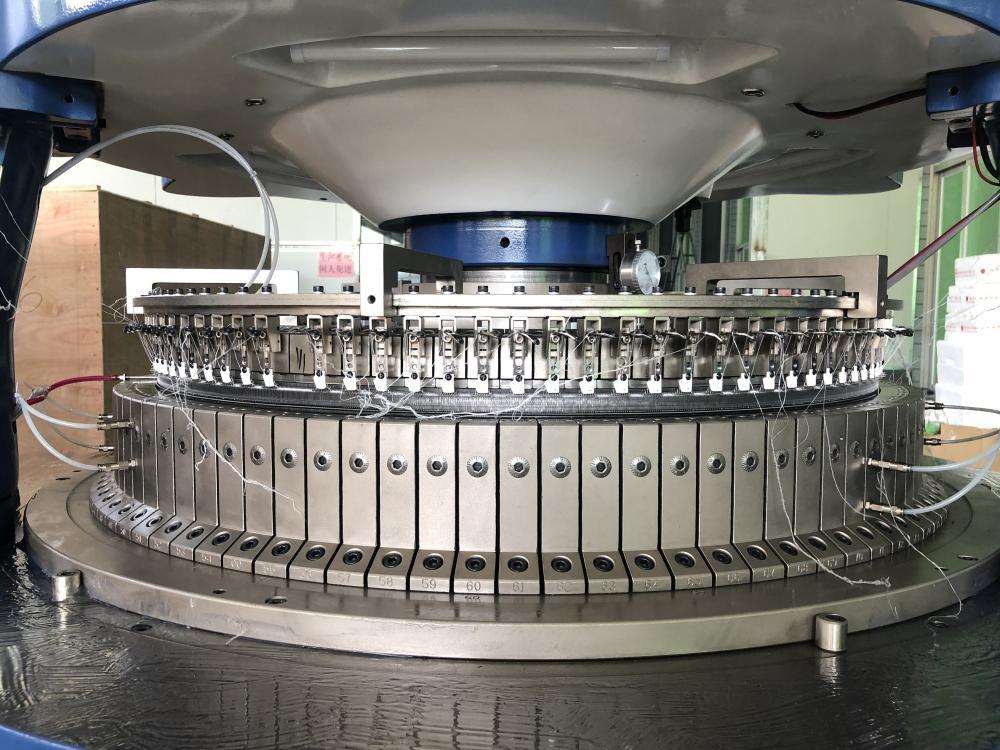

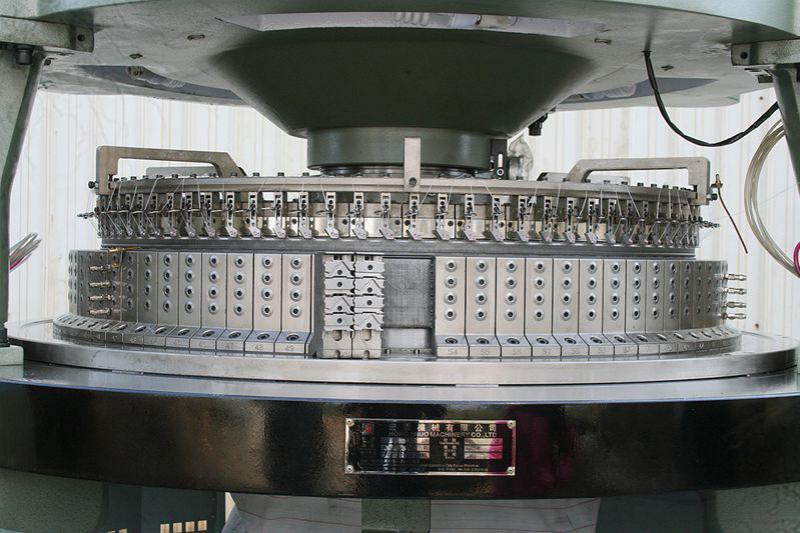

The interlock or rib knit machine is equipped with two tracks cams for the dial and four track cams for the cylinder. Users can easily and quickly change the cam and needle arrangement for knitting twill, air layer fabric, interlining fabric, bourrelet, pique fabric, double sided elastic cloth, small jacquard fabric and other fabrics. This multifunctional knitting machine supports cam and needle cylinder replacements with different needle numbers to serve as an interlock knitting machine or rib machine and successfully adapt to changing markets. Due to the 2 tracks + 4 mechanism, it is able to produce complex fabrics such as the lower texture of high-grade clothing.

Product Functions and Advantages
  • Because the cams are manufactured using special techniques and the track edges have undergone transition angle treatment, needle and sinker service life, as well as equipment running speed, are significantly improved.
  • Made of a high-density gray iron alloy, the cam boxes have undergone an aging treatment for a set time, thus preventing expansion or contraction caused by rapid temperature changes and controls machine part knitting accuracy.
  • The frame has undergone a natural aging treatment and the interlock or rib knit machine uses an oil-immersed gear meshing drive model with an exceptional stability and low noise levels.
  • An advanced computer control system automatically monitors and controls each operating parameter, including regular oil spraying in a fixed quantity, dust removal, needle breakage detection, automatic stop when torn fabric is detected, and when the machine reaches the rated output.
    • Product Application
    • Fabric Samples
    • Fabric Samples
    • Fabric Samples

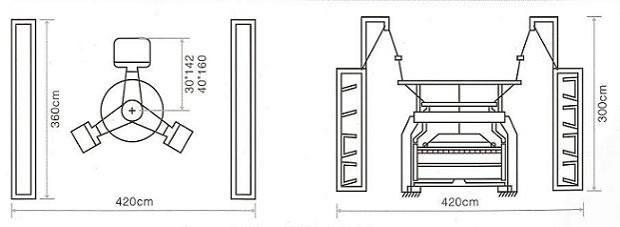

    Machine Dimension
    Machine Dimension
    Parameters of Double Jersey Interlock/Rib Knitting Machine
    Model Cylinder Dia. Gauge Feeder
    YFD 30"-44" 16G-36G 84F/96F
      12"-42" 16G-36G 2F/2.8F/INCH
    YFDJ 12"-40" 16G-18G 2F/INCH
    Standard Configurations

    Well designed sturdy machine frame
    Steel wire supported main drive system
    Japanese stainless steel cylinder
    Standard side creels
    Positive feeders B19Y/TPF/MPF
    Individual cylinder cam box for each feeder
    Inverter motor controller
    Mechanical fabric take-up system
    Anti-dust devices Top-3 & Middle-2
    Cadratex fabric spreader
    Integrated main power control panel with 3 shift counters
    Digital revolution counter
    Pneumatic spray oiler
    Needle detectors
    Ceramic tip yarn carriers
    Tools box

    Optional Equipments

    Positive feeders TPF/MPF
    Lycra feeders WAL5-4BL/MER
    Pump type oiler
    Aluminum creel
    Fabric detectors
    Fabric folding device

    Founded in 1996, Rel-Tex is an experienced Chinese manufacturer with a focus on the design and assembly of a variety of textile machines. Our knitting equipment covers a full range of modern textile processes that clothing producers can rely on to create quality products with excellent reliability. In addition to a full selection of equipment, premium spare parts can also be provided for all catalogued products.
