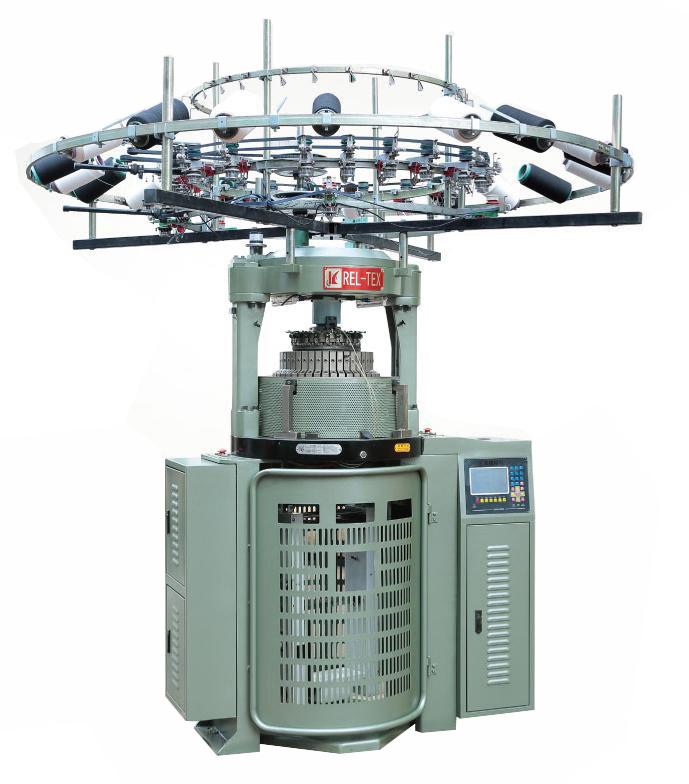

High Speed Jacquard Tights/ Pantyhose/ Leggings Knitting Machine

High Speed Jacquard Tights/ Pantyhose/ Leggings Knitting Machine
Product Description
The high speed small jacquard knitting machine is specially designed for the manufacturing of double jersey seamless hosiery products. You can control the looping state of the needles through the microcomputer control system, allowing you to produce transparent warm jacquard pantyhose, warm form-fitting pantyhose with a jacquard design and other high quality products. Thanks to a specially designed multi-stage cloth rolling control system, various types of fabrics can be pulled stably and uniformly. The jacquard pantyhose knitting machine is suitable for the processing of materials like cotton yarn, chemical fibers, blended yarn of different specifications, high-elastic polyester silk, and much more.
This equipment is often used to produce children’s clothing, form-fitting pantyhose, stockings, tights, warm pantyhose, underclothes and so on

Product Functions and Advantages
  • The cams feature several special techniques and the edge of tracks are carefully processed to prolong the working life of the needles and sinkers. This also increases the operating speed of the equipment.
  • Made from high-density gray iron alloy, the cam boxes undergo an aging treatment so as to effectively prevent the expansion and contraction caused by the temperature change of the machine, and successfully controls the knitting precision of its parts.
  • The advanced computer control system is capable of intelligently monitoring and controlling each operating parameter.
  • The independent industrial-grade microcomputer control system and the high-light LCD touch screen support complete touch input. All the pattern data and system settings are stored in the equipment’s memory system. Due to the independent battery device and circuits, these data can be automatically saved for 2500 hours if an interruption of power supply occurs. By connecting to an external PC, the internal data may be shared, which greatly increases its expandability and working efficiency.
  • The dedicated jacquard needle selector moves in rolls and meets various needs for needle selection. With steady working performance it significantly boosts the quality and output of knitted fabrics.
Fabric Samples
  • Fabric Samples
  • Fabric Samples
  • Fabric Samples
  • Fabric Samples
Parameters of Jacquard Knitting Machine
Model Diameter Gauge Feeders
YFSJL (SINGLE JERSEY) 4" - 12" 10G-28G 1.2-2.5F/INCH
YFGSGT (DOUBLE JERSEY) 4" - 12" 10G-28G 1.2-1.8FF/INCH
Founded in 1996, Rel-Tex is an experienced Chinese manufacturer with a focus on the design and assembly of a variety of textile machines. Our knitting equipment covers a full range of modern textile processes that clothing producers can rely on to create quality products with excellent reliability. In addition to a full selection of equipment, premium spare parts can also be provided for all catalogued products.
